ILAMB Benchmark Results

Mean State
Relationship
Results Table

Mean State Scores

	CLM4	CLM4.5	CLM5
Biomass	0.46	0.50	0.46
GEOCARBON (27.8%)	0.65	0.74	0.64
Tropical (27.8%)	~	~	~
GlobalCarbon (22.2%)	0.67	0.72	0.57
NBCD2000 (11.1%)	0.63	0.66	0.70
USForest (11.1%)	0.52	0.59	0.66
Burned Area	0.42	0.54	0.52
GFED4S (100.0%)	0.42	0.54	0.52
Gross Primary Productivity	0.70	0.74	0.73
Fluxnet (37.5%)	0.63	0.69	0.70
GBAF (62.5%)	0.73	0.77	0.75
Leaf Area Index	0.53	0.47	0.51
AVHRR (50.0%)	0.51	0.46	0.49
MODIS (50.0%)	0.56	0.49	0.54
Global Net Ecosystem Carbon Balance	0.63	0.63	0.87
GCP (50.0%)	0.55	0.61	0.77
Hoffman (50.0%)	0.70	0.65	0.97
Net Ecosystem Exchange	0.60	0.65	0.67
Fluxnet (69.2%)	0.60	0.65	0.66
GBAF (30.8%)	0.59	0.63	0.70
Ecosystem Respiration	0.66	0.70	0.68
Fluxnet (60.0%)	0.62	0.66	0.66
GBAF (40.0%)	0.72	0.75	0.71
Soil Carbon	0.37	0.66	0.52
HWSD (55.6%)	0.44	0.64	0.46
NCSCDV22 (44.4%)	0.29	0.69	0.59
Ecosystem and Carbon Cycle Summary	0.55	0.62	0.63
Evapotranspiration	0.76	0.78	0.77
GLEAM (50.0%)	0.78	0.79	0.77
MODIS (50.0%)	0.74	0.77	0.77
Evaporative Fraction	0.74	0.79	0.73
GBAF (100.0%)	0.74	0.79	0.73
Latent Heat	0.80	0.79	0.78
Fluxnet (25.0%)	0.72	0.69	0.70
GBAF (75.0%)	0.82	0.82	0.81
Runoff	0.82	0.80	0.78
Dai (100.0%)	0.82	0.80	0.78
Sensible Heat	0.75	0.75	0.73
Fluxnet (37.5%)	0.72	0.72	0.70
GBAF (62.5%)	0.77	0.77	0.74
Terrestrial Water Storage Anomaly	0.65	0.70	0.72
GRACE (100.0%)	0.65	0.70	0.72
Snow Water Equivalent	0.65	0.56	0.50
CanSISE (100.0%)	0.65	0.56	0.50
Permafrost	0.78	0.73	0.80
NSIDC (100.0%)	0.78	0.73	0.80
Hydrology Cycle Summary	0.74	0.74	0.72
Albedo	0.62	0.64	0.68
CERES (33.3%)	0.70	0.71	0.74
GEWEX.SRB (33.3%)	0.52	0.54	0.58
MODIS (33.3%)	0.64	0.66	0.70
Surface Upward SW Radiation	0.68	0.68	0.70
CERES (35.7%)	0.78	0.77	0.78
GEWEX.SRB (35.7%)	0.74	0.74	0.75
WRMC.BSRN (28.6%)	0.50	0.50	0.53
Surface Net SW Radiation	0.78	0.78	0.78
CERES (35.7%)	0.90	0.90	0.91
GEWEX.SRB (35.7%)	0.87	0.88	0.89
WRMC.BSRN (28.6%)	0.51	0.51	0.50
Surface Upward LW Radiation	0.83	0.83	0.82
CERES (35.7%)	0.91	0.91	0.91
GEWEX.SRB (35.7%)	0.91	0.91	0.90
WRMC.BSRN (28.6%)	0.62	0.63	0.63
Surface Net LW Radiation	0.65	0.65	0.63
CERES (35.7%)	0.70	0.70	0.68
GEWEX.SRB (35.7%)	0.72	0.72	0.70
WRMC.BSRN (28.6%)	0.50	0.50	0.49
Surface Net Radiation	0.77	0.77	0.75
CERES (27.8%)	0.86	0.87	0.86
Fluxnet (22.2%)	0.80	0.80	0.79
GEWEX.SRB (27.8%)	0.83	0.84	0.83
WRMC.BSRN (22.2%)	0.54	0.54	0.48
Radiation and Energy Cycle Summary	0.73	0.73	0.73
Surface Air Temperature	0.93	0.93	0.94
CRU (73.5%)	0.95	0.95	0.97
Fluxnet (26.5%)	0.86	0.86	0.87
Precipitation	0.75	0.75	0.75
CMAP (29.0%)	0.71	0.71	0.71
Fluxnet (13.0%)	0.58	0.58	0.58
GPCC (29.0%)	0.85	0.85	0.85
GPCP2 (29.0%)	0.77	0.77	0.77
Surface Relative Humidity	0.47	0.47	0.46
ERA (100.0%)	0.47	0.47	0.46
Surface Downward SW Radiation	0.88	0.88	0.88
CERES (27.8%)	0.91	0.91	0.91
Fluxnet (22.2%)	0.87	0.87	0.87
GEWEX.SRB (27.8%)	0.93	0.93	0.93
WRMC.BSRN (22.2%)	0.78	0.78	0.78
Surface Downward LW Radiation	0.88	0.88	0.88
CERES (35.7%)	0.90	0.90	0.90
GEWEX.SRB (35.7%)	0.93	0.93	0.93
WRMC.BSRN (28.6%)	0.79	0.79	0.79
Forcings Summary	0.74	0.74	0.74
Overall Summary	0.69	0.71	0.70

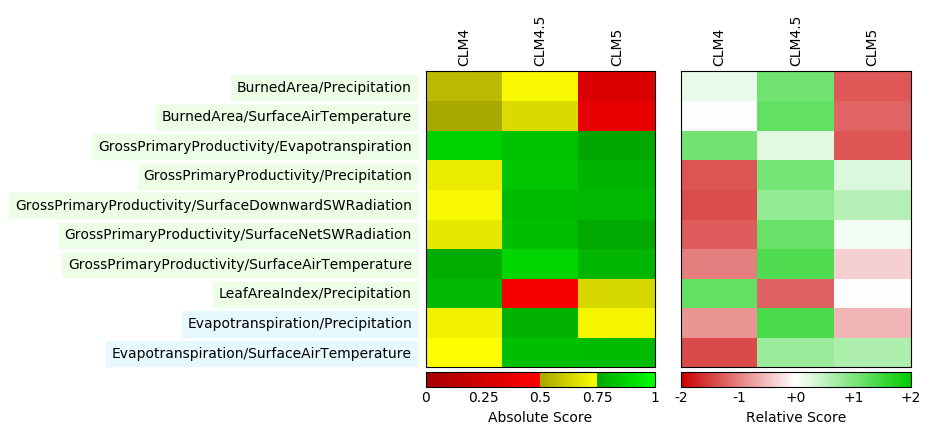

Relationship Scores

	CLM4	CLM4.5	CLM5
BurnedArea/GFED4S	0.53	0.69	0.33
Precipitation/GPCP2 (50.0%)	0.56	0.73	0.29
SurfaceAirTemperature/CRU (50.0%)	0.50	0.65	0.37
GrossPrimaryProductivity/GBAF	0.75	0.83	0.78
Evapotranspiration/GLEAM (20.0%)	0.87	0.83	0.75
Precipitation/GPCP2 (20.0%)	0.69	0.84	0.79
SurfaceDownwardSWRadiation/CERES (20.0%)	0.73	0.81	0.80
SurfaceNetSWRadiation/CERES (20.0%)	0.68	0.81	0.75
SurfaceAirTemperature/CRU (20.0%)	0.77	0.88	0.80
LeafAreaIndex/AVHRR	0.74	0.40	0.56
Precipitation/GPCP2 (100.0%)	0.74	0.40	0.56
LeafAreaIndex/MODIS	0.86	0.53	0.71
Precipitation/GPCP2 (100.0%)	0.86	0.53	0.71
Ecosystem and Carbon Cycle Summary	~	~	~
Evapotranspiration/GLEAM	0.78	0.85	0.83
Precipitation/GPCP2 (50.0%)	0.76	0.83	0.77
SurfaceAirTemperature/CRU (50.0%)	0.80	0.87	0.90
Evapotranspiration/MODIS	0.67	0.74	0.70
Precipitation/GPCP2 (50.0%)	0.66	0.73	0.67
SurfaceAirTemperature/CRU (50.0%)	0.68	0.76	0.73
Hydrology Cycle Summary	~	~	~
Radiation and Energy Cycle Summary (0.0%)	~	~	~
Forcings Summary (0.0%)	~	~	~
Overall Summary	~	~	~
